Online UPS

MTN-eLite Series 6-20 kVA

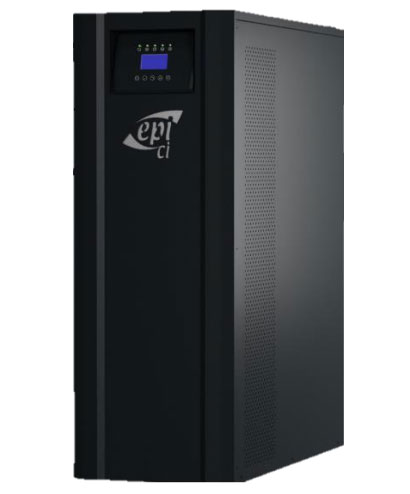

MTN-eLite Series
Single Phase UPS from 6-20 kVA

Product

MTN-Elite UPS is designed and built using state-of-the art technology and components to provide maximum protection to the powered loads with no impact on downstream systems and optimised energy savings. The series includes 6-20 kVA single/single phase models with on-line double conversion technology (VFI) with latest three level technology. The load is powered continuously by the inverter which supplies a sinusoidal voltage, filtered and stabilised in terms of form and frequency. Input and output filters provide significant further immunity from mains disturbances and lightning strikes.

In terms of technology and performance, MTN-Elite is one of the best UPS available on the market today: three level inventer to achieve 95% efficiency af half load, output power factor 1 to increase in efficiency of system and devices and reduce power system losses

Features

Three level Technology, Compact and Robust, MTN-elite monoline is the perfect UPS to protect and supply loads in the industrial fields and critical applications.

  • Three Level Technology
  • On Line-Double Conversion Technology (Class VFI-SS-111)
  • IGBT PWM Rectifer & Inverter Technology
  • High Efficiency up to 95,5%
  • Higher efficiency with eco mode up to 98%
  • High Input Power Factor (>0.99)
  • Low Input THD (≤%5)
  • Increase battery life time up to 35% with smart charger
  • Temperature compensation battery charging
  • Higher fan file time with Intelligent fan speed control
  • Operate as frequency converter (50 Hz / 60 Hz)
  • Short Circuit, Overload, Lightning and Surge Protection
  • Perfect Generator Compability
  • Easy Service with Manual bypass
  • Variable input low voltage depending on loading percentage (up to -40%)
  • Parallelable with Common or Separate Battery Cabinet
  • Realtime warnings at LCD screen
