CX Series
10 ~ 150kVA
Frame Mounted UPS
Introduction
CX 10-150kVA uses frame design, with 10/15/20/25/30kVA modules, suitable for standard19 inches network cabinet. It adopts online double conversion technology, which can completely eliminate all kinds of grid problems and provide customers withstable and pure sinusoidal power supply protection.
Features
• Frame mounted design
• Wide input voltage range
• Online double conversion and three level technology
• DSP digital control technology
• Output power factor 1
• N+X redudancy
• Communications: RS485/Dry contact card/SNMP option
• The number of battery cells is 30-50 adjustable

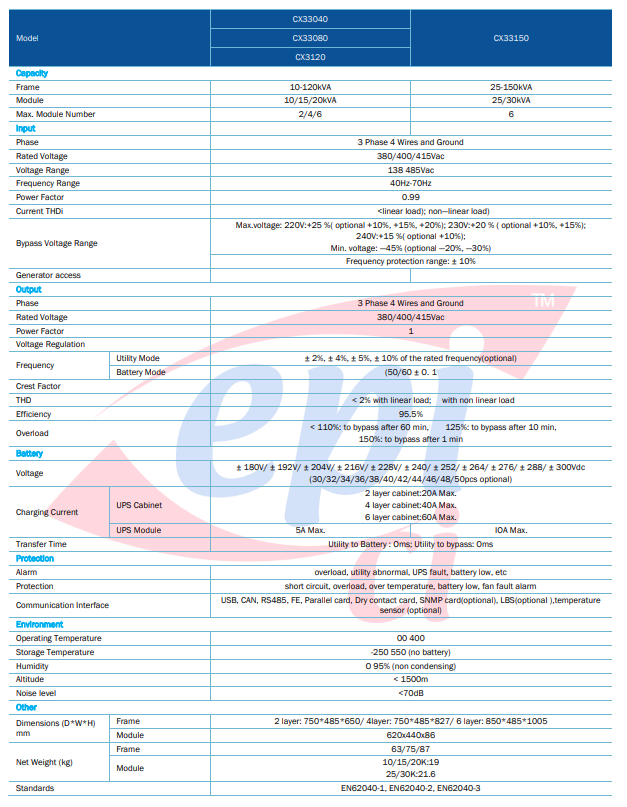

Technical Specification
