Features
Technical Specification
Features

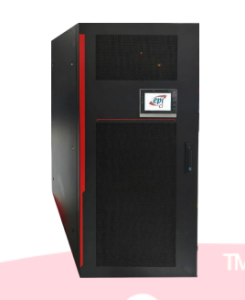

XRT+ Series
10-600kVA
Industrial Online UPS
Features
- Wide Advanced rectification and IGBT inverter
- control technology, online double conversion
- structure, support 380/400/415V, 50/60Hz
- power grid system
- Input power factor up to 0.99, input current
- harmonics less than 3%, overall efficiency over
- 95%, green and environmentally friendly, high
- efficiency and energy saving
- Output power factor 0.8 or 0.9, output voltage
- harmonics less than 2%, top load capacity, load
- capacity is more than 12.5% higher than
- traditional power frequency UPS
- Ultra-long mean time between failures and ultra
- low mean time to repair, saving operation and
- maintenance costs

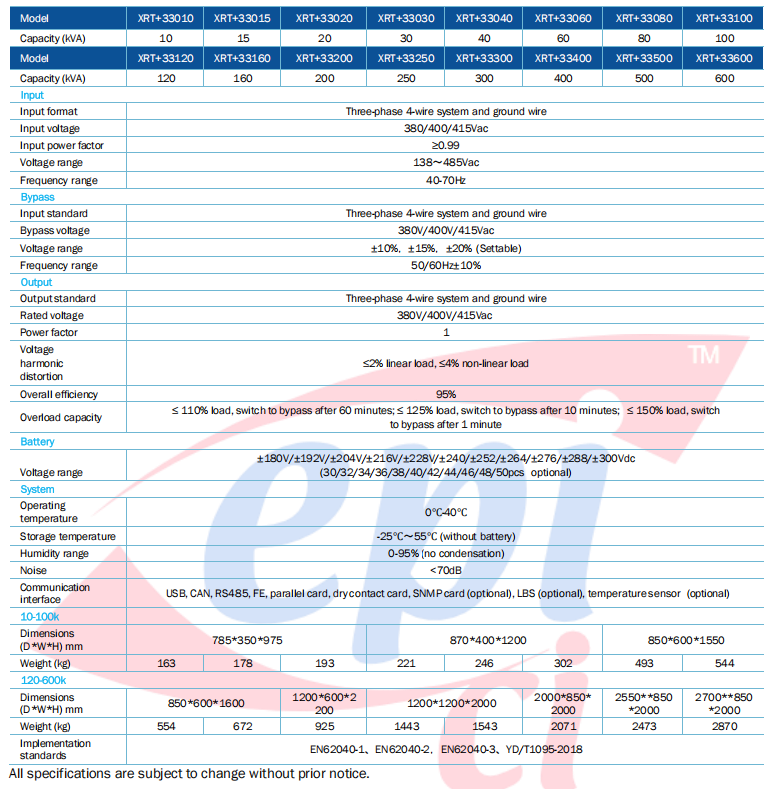

Technical Specification
