CX Series (25 ~ 250kVA)
Modular UPS (25k module)
Introduction
CX 25-250kVA is a modular design UPS. It uses on line double conversion and advanced DSP digital control technology, resulting in the highest levels of phase in, three phase out, with each module is 25kVA. It’s available from 25kVA to 250kVA unit capacity, and parallel 4 units to 1000kVA.
Applications
Medium data centers, server rooms Telecom, IT equipment, group enterprises, and other mission critical applications.
Benefits
- Modular design, improves maintainability and reliability
- ECO mode operation for energy saving
- Cold start for easy operation
- Communications for network management and remote monitoring
- N+X redundancy, expanding as required, saves initial investment
Features
- Centralized bypass, centralized control,
- modular design.
- Online double conversion and three level technology
- DSP digital control technology
- Wide input voltage range
- Output power factor 1
- High power density with size
- 440mm*620mm*2U
- Cold start (battery start up)
- ECO mode operation
- intelligent battery management
- N+X redundancy
- Communications: RS485/Dry contact
- Card/SNMP option
- Optional emergency power off (EPO) function
- Compatible with lithium battery applications

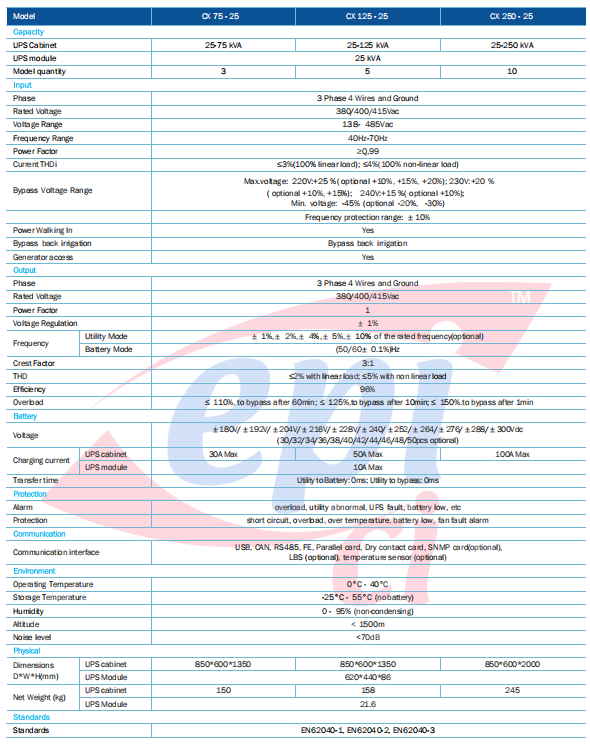

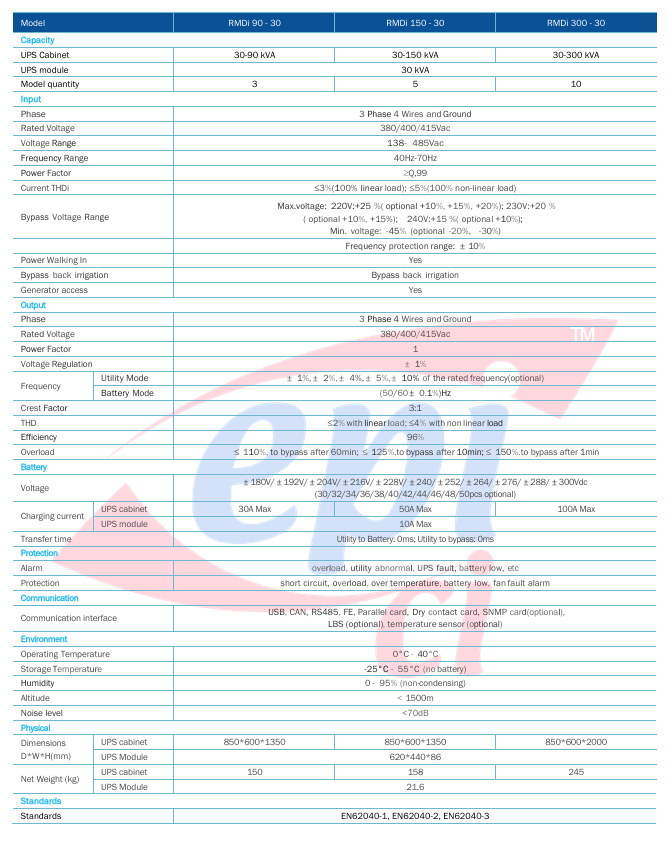

Technical Specification
